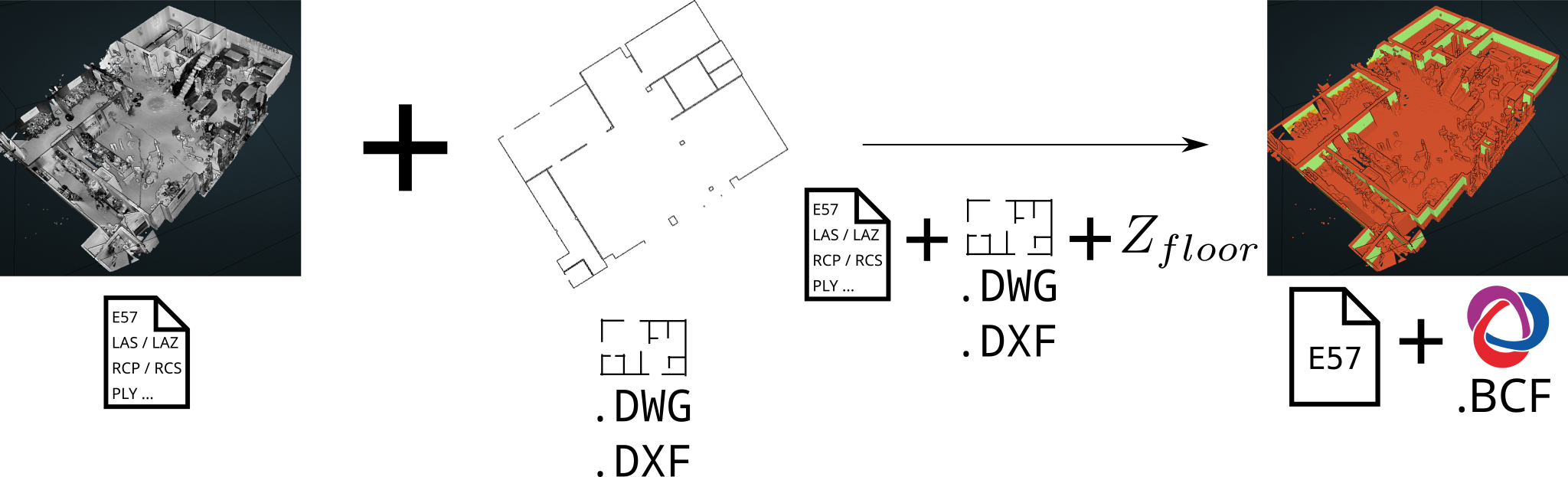

BIMAQ2D (BIM Assurance Quality 2D) is a solution that checks the reliability of a 2D plan against a 3D point cloud. BIMAQ2D takes as input a 2D plan (DGN, DWG, DXF) with a ground elevation (Z scalar), as well as a 3D point cloud (E57, LAS, RCP, etc.), and generates a colored 3D point cloud along with a BCF (BIM Collaboration Format) file to make it easier to locate misalignments between the 3D point cloud and the 2D plan.
Check the reliability of the model in relation to the point cloud on which it was produced
Monitor the construction of the building in relation to the preliminary design/execution model
Facilitate the creation of the As-Built model from As-designed model
Identify areas to be updated in the mock-up for management, operation and maintenance purposes
Facilitates quality control of the 2D plan
Immediate handling : the NORM3D solution is simple to handle, no needs for any experience
Gain in comfort : the NORM3D solution simplifies modeling tasks
Directly meets the BIM business requirement: by generating a precise result directly in BFC format
Interoperability : by any software compatible with BFC (third-party applications, SaaS, ...)
Time optimization : achieve up to 85% more productivity
Cost savings : save more than 50% of production cost
Provides the ability to respond to larger projects
Display of results online via a web browser
Real-time: < 10 minutes for a 1000m² building
Handle large datasets (e.g., buildings with billions of points)
Plug&Play, simplified launch: no software to install, no equipment required, no settings necessary
Accessibility: operates via a web browser 24/7 from any device, anywhere
Ergonomic solution: intuitive and seamless for easy use
Gracefully given by MERKO
The BIMAQ2D solution was designed and developed by NORM3D, a French company based in Normandy. The dynamically launched processes are executed in France by French entities:NORM3D, OVHcloud.
